151509. GC-1043 5-1000MHz 3-way Tap
  • 151509. GC-1043 5-1000MHz 3-way Tap

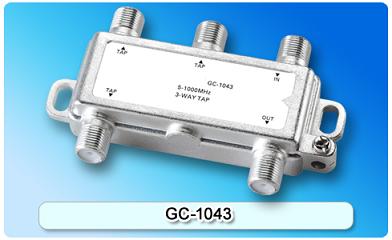

151509. GC-1043 5-1000MHz 3-way Tap

Zinc die-cast housing, tin-plated; Screening factor: 5-1000MHz≥100dB; Easy installation; Low insertion loss,high return loss and isolation; Micro-strip circuit design and perfect performance index; All ports F-(f)connector,75 Ohm.
Detailed description

Features:

  • Zinc die-cast housing, tin-plated
  • Screening factor: 5-1000MHz≥100dB
  • Easy installation
  • Low insertion loss,high return loss and isolation
  • Micro-strip circuit design and perfect performance index
  • All ports F-(f)connector,75 Ohm

Specifications

Item

Frequency Range

10

12

14

16

18

20

22

24

27

30

Insertion Loss
(dB)

5-40(MHz)

3.8

3.8

2.5

2

2

1.2

0.8

0.8

0.8

0.8

40-470(MHz)

3.8

3.8

2.5

2

2

1.2

0.8

0.8

0.8

0.8

470-860(MHz)

4

4

2.8

2.2

2.2

1.5

1

1

1

1

860-1000(MHz)

4.2

4.2

3

2.5

2.2

1.5

1

1

1

1

Tap Loss Tolerance
(dB)

5-40(MHz)

±1.0

40-470(MHz)

±1.0

470-860(MHz)

±1.5

860-1000(MHz)

±1.5

Mutual Isolation
(dB)

5-40(MHz)

28

28

28

28

28

28

28

28

28

28

40-470(MHz)

28

28

28

28

28

28

28

28

28

28

470-860(MHz)

25

25

25

25

25

25

25

25

25

25

860-1000(MHz)

25

25

25

25

25

25

25

25

25

25

Reverse Isolation
(dB)

5-40(MHz)

28

28

28

30

30

30

30

40

40

40

40-470(MHz)

25

25

28

28

25

30

30

35

35

35

470-860(MHz)

25

25

25

25

25

28

28

30

30

30

860-1000(MHz)

25

25

25

25

25

25

27

28

28

28

Return Loss
(dB)

5-40(MHz)

20

20

20

20

20

20

20

20

20

20

40-470(MHz)

20

20

20

20

20

20

20

20

20

20

470-860(MHz)

18

18

18

18

18

18

18

18

18

18

860-1000(MHz)

18

18

18

18

18

18

18

18

18

18
