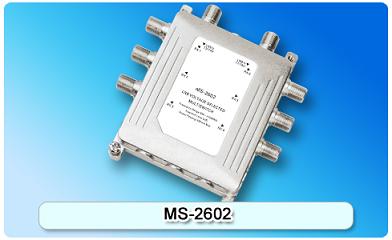

150607. MS-2602 2 in 6 Multiswitch, 2 In Series

Zinc die-cast housing, nickel-plated; Excellent quality component, professional circuit design and low loss; 13/18V supplied by satellite receiver through coaxial cable to switch corresponding port; Capable of connecting two SATV signals simultaneously, which is switched through 13/18V.

Detailed description

Features:

Zinc die-cast housing, nickel-plated
Excellent quality component, professional circuit design and low loss
13/18V supplied by satellite receiver through coaxial cable to switch corresponding port
Capable of connecting two SATV signals simultaneously, which is switched through 13/18V
Distributed into six subscribers to use simultaneously and no mutual interference
Applicable to multi-satellite and multi-receiver usage
Power supplied from satellite receiver or external power

Specifications

Item	Specification	Item	Specification
Frequency Range	950-2150(MHz)	DC Current Consumption	200(mA)
Insertion Loss	5(dB)	DC Max Power Passing	500(mA)
Isolation	25(dB)	Supply Voltage	20V（±1）500mA
Return Loss	10(dB)	Impedance(all ports)	75(Ω)
Normal Working Voltage	12-20(V)

Switching Voltage : 13/18V
Connectors:“F” type female
