150614. MS-3308 3 in 8 Multiswitch, 3 In Series
  • 150614. MS-3308 3 in 8 Multiswitch, 3 In Series

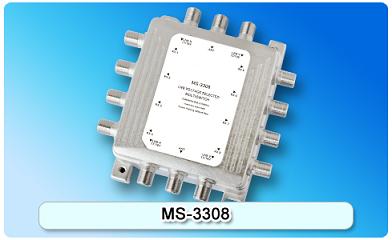

150614. MS-3308 3 in 8 Multiswitch, 3 In Series

Zinc die-cast housing, nickel-plated; Excellent quality component, professional circuit design and low loss; 13/18V supplied by satellite receiver through coaxial cable to switch corresponding port; Capable of connecting two SATV signals, one ANT signal or FM broadcast simultaneously.
Detailed description

Features:

  • Zinc die-cast housing, nickel-plated
  • Excellent quality component, professional circuit design and low loss
  • 13/18V supplied by satellite receiver through coaxial cable to switch corresponding port
  • Capable of connecting two SATV signals, one ANT signal or FM broadcast simultaneously
  • Two SATV signals switched through 13/18V
  • Distributed into four subscribers to use simultaneously and no mutual interference
  • Applicable to multi-satellite and multi-receiver usage

Specifications

Item Specification Item Specification
Frequency Range ANT

5-860 (MHz)

Return Loss ANT Input 12(dB)
Frequency Range SAT

950-2150 (MHz)

Return Loss Outputs 8(dB)
Insertion Loss ANT

5(dB)

Output Level ANT 85(dBuV)
Insertion Loss SAT

5(dB)

Output Level SAT 95(dBuV )
Isolation In-In SAT 25(dB) Normal Working Voltage 12-20 (V)
Isolation In-In SAT/ANT 25(dB) DC Power Consumption 60(mA)
Isolation Between Outputs 25(dB) DC Max Power Passing 500(mA)
Isolation H/V 28(dB) Impedance(all ports) 75(Ω )
Return Loss SAT Inputs 10(dB)
Switching Voltage : 13/18V
Connectors:“F” type female
