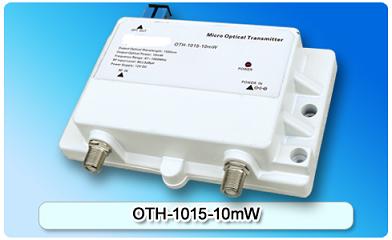

153001. OTH-1015-10mW Micro Optical Transmitter

Designed for FTTH(Fiber To The Home) networks; Excellent Linearity and flatness; Single-mode fiber high return loss; Using GaAs amplifier active devices; Ultra low noise technology; Using DFB coaxial small package laser.
Detailed description

Features:

  • Designed for FTTH(Fiber To The Home) networks
  • Excellent Linearity and flatness
  • Single-mode fiber high return loss
  • Using GaAs amplifier  active devices
  • Ultra low noise technology
  • Using DFB coaxial small package laser
  • Smaller size and easier install
  • Red-LED for power indication

Specifications

Number Item

Unit

Description

Remark

Customer Interface
RF Connector   F-female
Optical Connector   SC/APC
Power Supply   F-female
Optical Parameter
Optical Return Loss dB ≥45
Output Optical Wavelength nm 1550
Output Optical Power mW 10
Optical Fiber Type   Single Mode
RF Parameter
Frequency Range MHz 47-1000
Flatness dB ±0.75
RF Input Level dBµV 80±5
Input Impedance Ω 75
Return Loss dB ≥16
C/N dB ≥52
CSO dB ≥60
CTB dB ≥63
Other Parameter
Power Supply VDC 12
Power Consumption W <2
Dimensions mm 100*98*28
