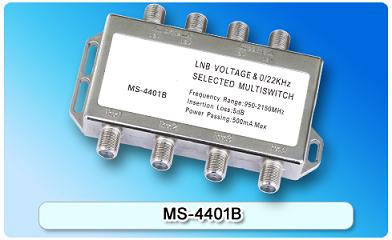

150622. MS-4401B 4 in 4 Multiswitch, 4 In Series

Zinc die-cast housing, nickel-plated; Excellent quality component, professional circuit design and low loss; 13/18V、0/22KHz supplied by satellite receiver through coaxial cable to switch corresponding port; Capable of connecting four SATV signals simultaneously; Four SATV signals switched through 13/18V、0/22KHz.

Detailed description

Features:

Zinc die-cast housing, nickel-plated
Excellent quality component, professional circuit design and low loss
13/18V、0/22KHz supplied by satellite receiver through coaxial cable to switch corresponding port
Capable of connecting four SATV signals simultaneously
Four SATV signals switched through 13/18V、0/22KHz
Distributed into four subscribers to use simultaneously and no mutual interference
Applicable to multi-satellite and multi-receiver usage
Built-in switching circuit for power from receiver, can work without external power adaptor

Specifications

Item	Specification	Item	Specification
Frequency Range	950-2150 (MHz)	Output Level	95(dBuV )
Insertion loss	5(dB)	Normal Working Voltage	12-20(V)
Isolation Between Outputs	25(dB)	DC Power Consumption	40(mA)
Switching Isolation Input	28(dB)	DC Max Power Passing	500(mA)
Return Loss Inputs	12(dB)	Impedance(all ports)	75(Ω)
Return Loss Outputs	8(dB)

Switching Voltage/Signal : 13/18V、0/22KHz
Connectors:“F” type female
