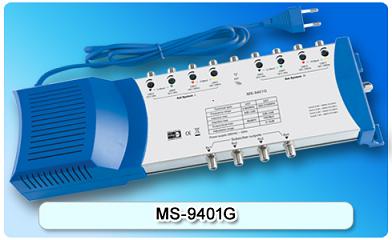

150664. MS-9401G Gain Adjustable Multiswitch of 9 in 4,9 In Series

Excellent quality tinplate housing and exquisite plastic case shell attached, making installation convenient; Excellent quality component, professional amplification design and low loss; Internal 18V 1500mA switching mode power can connect 180~250V AC; 22KHz signal output design and compatible with more types of LNB; Gain adjustable to equalize output and optimize signal reception.

Detailed description

Features:

Excellent quality tinplate housing and exquisite plastic case shell attached, making installation convenient.
Excellent quality component, professional amplification design and low loss
Internal 18V 1500mA switching mode power can connect 180~250V AC
22KHz signal output design and compatible with more types of LNB
Gain adjustable to equalize output and optimize signal reception
13/18V、0/22KHz、DiSEqC1.0/2.0 supplied by satellite receiver through coaxial cable to switch corresponding port
Capable of connecting eight SATV signals、one ANT signal or FM broadcast simultaneously
Distributed into four subscribers to use simultaneously and no mutual interference
Applicable to multi-satellite and multi-receiver usage

Specifications

Item	Specification	Item	Specification
Frequency Range ANT	5-860(MHz)	Return Loss Outputs	8(dB)
Frequency Range SAT	950-2150(MHz)	Gain Adjustable Range	0-15(dB)
Insertion Loss ANT	3(dB)	22KHz signal output	22±2KHz
Insertion Loss SAT	2(dB)	Output Level ANT	85(dBuV)
Isolation In-In SAT	25(dB)	Output Level SAT	100(dBuV)
Isolation In-In SAT/ANT	25(dB)	Normal Working Voltage	12~20(V)
Isolation Between Outputs	25(dB)	DC Power Consumption	300(mA)
Switching Isolation SAT Inputs	28(dB)	External power supply	180~250V 50/60Hz
Return Loss SAT Inputs	10(dB)	Temperature Range	-20℃~60℃
Return Loss ANT Input	12(dB)	Impedance(all ports)	75(Ω)

Switching Voltage、Signal : 13/18V 、0/22KHz、DiSEqC 1.0，2.0
Connectors:“F” type female
