150533. GD-81E
  • 150533. GD-81E

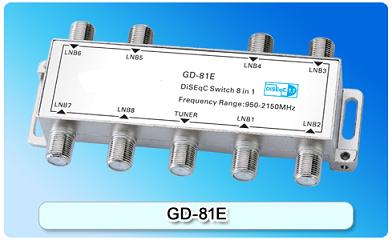

150533. GD-81E

Zinc die-cast housing, nickel-plated; Excellent quality component , professional circuit design and low loss; Excellent quality chip , professional program design and compatible with more types of satellite receiver; DiSEqC 1.1 control functions; Select one of eight satellite signals through DiSEqC1.1 commands supplied.
Detailed description

Features:

  • Zinc die-cast housing, nickel-plated
  • Excellent quality component , professional circuit design and low loss
  • Excellent quality chip , professional program design and compatible with more types of satellite receiver
  • DiSEqC 1.1 control functions
  • Select one of eight satellite signals through DiSEqC1.1 commands supplied from satellite receiver
  • Utilize one coaxial cable to transmit control instruction and satellite signal simultaneously

Specifications

Item

Specification

Item

Specification

Frequency Range

950-2150(MHz)

Normal Working Voltage

12-20(V)

Insertion Loss

3(dB)

DC Power Consumption

10(mA)

Isolation

20(dB)

DC Max Power Passing

500(mA)

Return Loss

8(dB)

Impedance(all ports)

75(Ω)
