150907. A03-20 In-line Amplifier
  • 150907. A03-20 In-line Amplifier

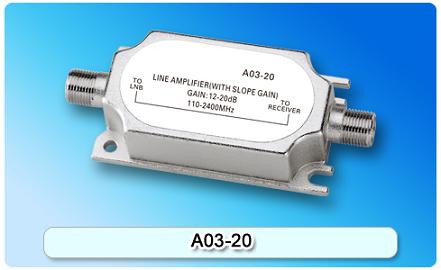

150907. A03-20 In-line Amplifier

Zinc die-cast housing,nickel-plated; Power supply:15±3VDC; Frequency Range:110~2400MHz; Power supplied from satellite receiver through coaxial cable; DC power passing: 500mA (MAX.); With Slope Gain:12dB-20dB.
Detailed description

Features:

  • Zinc die-cast housing,nickel-plated
  • Power supply:15±3VDC
  • Frequency Range:110~2400MHz
  • Power supplied from satellite receiver through coaxial cable
  • DC power passing: 500mA (MAX.)
  • With Slope Gain:12dB-20dB

Specifications

Item

Frequency Range(MHz)

Gain(dB)

Return Loss(dB)

A03-20

110~2400

12~20

≥10.0
