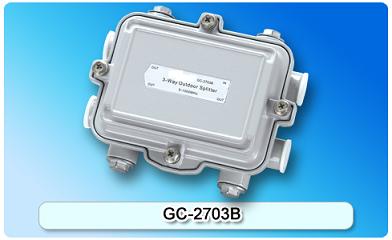

151604. GC-2703B Outdoor 3-Way Splitter

Dedicated for outdoor CATV trunk system and designed with excellent waterproof craft; Aluminum alloy housing with anti-corrosive paint and neoprene weather sealed; With isolation wire netting mounting to avoid RFI and good screening factor; Super-compact size, light weight and easy to attach.

Detailed description

Features:

Dedicated for outdoor CATV trunk system and designed with excellent waterproof craft
Aluminum alloy housing with anti-corrosive paint and neoprene weather sealed
With isolation wire netting mounting to avoid RFI and good screening factor
Super-compact size, light weight and easy to attach
75Ohm，5/8〃 -24UNEF Available to configure a KS-F rotary joint
Available to supply 5-1000MHz
Power passing all ports: 10A AC/DC

Specifications

Frequency Range (MHz)	Insertion Loss(dB)	Mutual Isolation(dB)	Return Loss(dB)
5-40	≤4.0/7.5	≥25	≥20
40-470	≤4.2/7.5	≥28	≥20
470-860	≤4.5/8.0	≥22	≥18
860-1000	≤5.0/8.5	≥20	≥17
