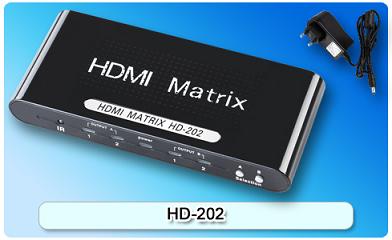

152702. HD-202 HDMI Matrix

2-in 2-out full HDMI Matrix switch; HDMI Specification 1.3b compliant; Integrated HDCP decryption/encryption engines which are compatible with HDCP 2.0; Encrypted HDCP keys stored in serial EE; Wide frequency range:25MHz-225MHz TMDS clock.
Detailed description

Features:

  • 2-in 2-out full HDMI Matrix switch
  • HDMI Specification 1.3b compliant
  • Integrated HDCP decryption/encryption engines which are compatible with HDCP 2.0
  • Encrypted HDCP keys stored in serial EE
  • Wide frequency range:25MHz-225MHz TMDS clock
  • Support 12-bit deep color 1080P
  • Supports HDCP Repeater
  • The 2 HDMI outputs can be from the same or different sources
  • Easy to install and simple to use.
  • LED indicators for signal connection
  • Encloses a Remote Controller for operational flexibility and easy control

Specifications

Item

Specification

Item

Specification

Product

2-in 2-out HDMI Matrix

Frequency Range

25-225MHz

HDMI Source Input Port

2

Vertical Frequency Range

60Hz

Output Port to Display

2

Power Consumption (max.)

8 Watts

Input Port Connector

HDMI 19 pin A type

Operation Temperature

0℃ to 70℃

Output Port Connector

HDMI 19 pin A type

Power Adapter

5V 2 A

HDCP Compliant

HDCP Rev 2.0

Housing Material

ABS

Single Link Range

1920*1200

Dimension(mm)

195*86*26mm
