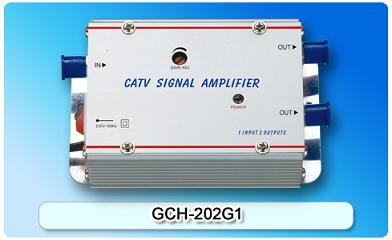

151806. GCH-202G1 2-way Splitter Amplifier

Designed for CATV indoor use and meet multi-user; Aluminum die-cast housing, fast heat-sinking With gain adjustable functions manually; High quality component, excellent linear amplification; Professional circuit design, low noise figure Good in band flatness.

Detailed description

Features:

Designed for CATV indoor use and meet multi-user
Aluminum die-cast housing, fast heat-sinking
With gain adjustable functions manually
High quality component, excellent linear amplification
Professional circuit design, low noise figure
Good in band flatness
All ports F female connector 75Ohm , convenient to use

Specifications

Item	Unit	Specification	Item	Unit	Specification
Frequency Range	MHz	45-862	Noise Figure	dB	≤6
Gain	dB	12±3	Power Consumption	W	1
Gain Adjustable Range	dB	0-10	Working Voltage	V	AC175-250
Flatness In Band	dB	±2	Operating Temperature	℃	-40-50
Return Loss	dB	≥16
