150707. GC-SW21C Multi-Dish Switch, Multi-Dish Switch
  • 150707. GC-SW21C Multi-Dish Switch, Multi-Dish Switch

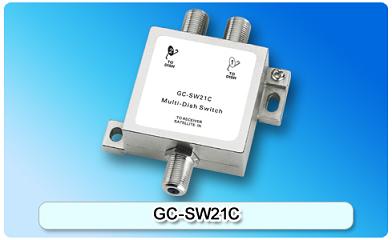

150707. GC-SW21C Multi-Dish Switch, Multi-Dish Switch

Zinc die-cast housing, nickel-plated; Excellent quality component , professional circuit design and low loss; Excellent quality chip ,professional program design and compatible with more types of satellite receiver; Select one of two satellite signals through control instruction supplied from satellite receiver.
Detailed description

Features:

  • Zinc die-cast housing, nickel-plated
  • Excellent quality component , professional circuit design and low loss
  • Excellent quality chip ,professional program design and compatible with more types of satellite receiver
  • Select one of two satellite signals through control instruction supplied from satellite receiver
  • Utilize one coaxial cable to transmit control instruction and satellite signal simultaneously

Specifications

Item

Specification

Item

Specification

Frequency Range

950-2150(MHz)

Normal Working Voltage

12-20(V)

Insertion Loss

3(dB)

DC Power Consumption

10(mA)

Isolation

20(dB)

DC Max Power Passing

500(mA)

Return Loss

8(dB)

Impedance(all ports)

75(Ω)



Connectors:“F” type female
