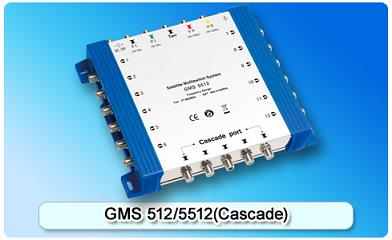

150714. GMS 512/5512(Cascade) 5 in 12 Multiswitch

Suitable for multi-satellite and multi-user system; 4 satellite inputs, 1 terrestrial input; 12 subscriber outputs, cascade and finite multiswitches; Low cascading loss and high isolation; Feed from Quattro-LNB or Quad-LNB thru 22KHz generator; SAT IF selected by 13/18V, 22KHz.

Detailed description

Features:

Suitable for multi-satellite and multi-user system
4 satellite inputs, 1 terrestrial input
12 subscriber outputs, cascade and finite multiswitches
Low cascading loss and high isolation
Feed from Quattro-LNB or Quad-LNB thru 22KHz generator
SAT IF selected by 13/18V, 22KHz
Professional design, exquisite appearance and convenient installation

Specifications

Model	GMS 512/5512(Cascade)
Inputs	SAT	4
Inputs	Terr	1
Subscriber Outputs		12
Frequency(MHz)	SAT	950-2150
Frequency(MHz)	Terr	47-862
Trunk Loss (dB) (Cascade)	SAT	5
Trunk Loss (dB) (Cascade)	Terr	4
Tap Loss (dB)	SAT	1dB±1
Tap Loss (dB)	Terr	5dB±1
Return Loss (dB)	SAT	12
Return Loss (dB)	Terr	10
Isolation (dB)	LNB-LNB	35
	Terr-SAT	30
	SAT-Terr	35
	H/V	30
Switching Voltage		15±1V
Switching Commands		13/18V 0/22KHz
Power Supply		DC:18V 1.2A
