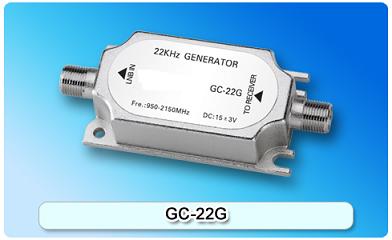

150711. GC-22G 22KHz Generator, 13-18& 12V Switch & 22KHz Gen

Zinc die-cast housing, nickel-plated; Excellent quality component, professional circuit design and low loss; Low power consumption, utilize in-line DC power between LNB and multi-switch Insert the device between LNB and multi-switch to control LNB to Hi-L.O . extend thecompatibility of multi-switch to LNB.

Detailed description

Features:

Zinc die-cast housing, nickel-plated
Excellent quality component, professional circuit design and low loss
Low power consumption, utilize in-line DC power between LNB and multi-switch
Insert the device between LNB and multi-switch to control LNB to Hi-L.O . extend thecompatibility of multi-switch to LNB

Specifications

Item	Specification	Item	Specification
Frequency Range	950-2150MHz	22KHz Accuracy	22 ± 4 KHz
Insertion Loss	3dB	Return Loss	8dB
Working Voltage	12-20 V	Power Consumption	10mA
Maximum Current	500mA	Impedance	75Ω

Connectors:“F” type female
