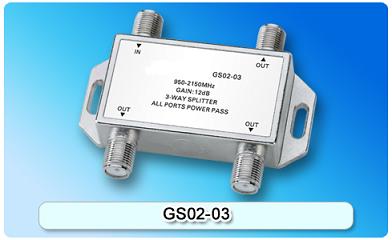

150808. GS02-03 SAT 3-Way Amplifier Splitter
  • 150808. GS02-03 SAT 3-Way Amplifier Splitter

150808. GS02-03 SAT 3-Way Amplifier Splitter

Zinc die-cast housing, nickel-plated; Easy installation with two edge hole sites; Screening factor: 950-2150MHz≥100dB; Suitable for SATV; Power passing-24V 0.8A(MAX.); All ports F-(f)connector,75Ohm.
Detailed description

Features:

  • Zinc die-cast housing, nickel-plated
  • Easy installation with two edge hole sites
  • Screening factor: 950-2150MHz≥100dB
  • Suitable for SATV
  • Power passing-24V 0.8A(MAX.)
  • All ports F-(f)connector,75Ohm

Specifications

Frequency Range (MHz)

Gain(dB)

Return Loss(dB)

Noise Figure(dB)

950-1750

≥10

≥10

≤5

1750-2150

≥10

≥10

≤5
