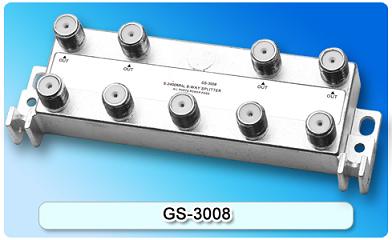

150851. GS-3008 SAT 8-Way Splitter

Zinc die-cast housing, tin-plated; Screening factor: 5-2400MHz≥100dB; Easy installation; Low insertion loss,high return loss and isolation; Micro-strip circuit design and perfect performance index; All ports F-(f)connector,75 Ohm.

Detailed description

Features:

Zinc die-cast housing, tin-plated
Screening factor: 5-2400MHz≥100dB
Easy installation
Low insertion loss,high return loss and isolation
Micro-strip circuit design and perfect performance index
All ports F-(f)connector,75 Ohm

Specifications

Frequency Range (MHz)	Insertion Loss(dB)	Mutual Isolation(dB)	Return Loss(dB)
5-40	≤12.0	≥20	≥10
40-1000	≤12.0	≥20	≥10
1000-1750	≤14.0	≥20	≥10
1750-2400	≤16.0	≥20	≥10
