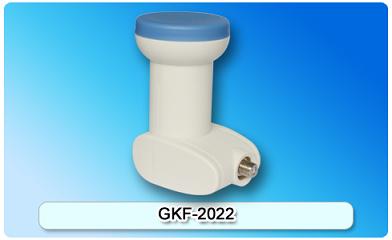

151033. GKF-2022 Ku-Band Dual Polarity Circular Single LNBF

Circular Ku-Band for Analog and Digital reception; Low noise figure; Low power consumption Easy installation; High quality weather protection.

Detailed description

Item	Specification	Item	Specification
Input Frequency Range	11.70～12.75GHz	Image Rejection	40dB(Min.)
Output Frequency Range	950～2000MHz	Output VSWR	2.0:1(Max.)
Noise Figure	0.6dB(Typ.)	Output Power	0dBm (Min.)(at 1dB gain compression)
Conversion Gain	60dB(Typ.)	Connector Type	75Ω Female Connector
Gain Flatness	±0.5dB/26MHz	DC Current Consumption	90mA(Typ.)
L.O. Frequency	10.75GHz	POL. Switching Voltage	(RHCP)11.0-14.0VDC (LHCP)16.0-20VDC
L.O. Frequency Stability	±1.0MHz(Max.)@+25℃ ±2.0MHz(Max.)@-30℃~+70℃	Operating Temperature	-30℃~+70℃
L.O. Phase Noise	-50dBc/Hz@1KHz -75dBc/Hz@10KHz -95dBc/Hz@100KHz
