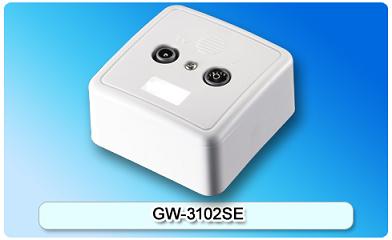

152010. GW-3102SE TV/SAT wall socket

Zinc die-cast housing and high-grade plastic panel; Connector: TV IEC 169-29.5mm plug(TC-T);SAT IEC 169-29.5mm socket(TC-Z); SAT F-type socketScreenning factor: 5-450MHz≥75dB;450-862MHz≥75dB;862-2150MHz≥75dB; Frequency range:5-2150MHz.

Detailed description

Features:

Zinc die-cast housing and high-grade plastic panel
Connector: TV IEC 169-29.5mm plug(TC-T);SAT IEC 169-29.5mm socket(TC-Z)
SAT F-type socketScreenning factor: 5-450MHz≥75dB;450-862MHz≥75dB;862-2150MHz≥75dB;
Frequency range:5-2150MHz
Power passing-24V 0.8A(MAX.)

Specifications

Item	Frequency Range(MHz)	Insertion Loss(dB)	Return Loss(dB)
IN-TV	5-862	≤2.5	≥10
IN-TV	950-2150	≥20.0
IN-SAT	5-862	≥20.0
IN-SAT	950-2150	≤3.0
