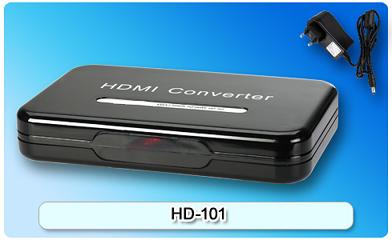

152806. HD-101 HDMI Converter

One YPbPr input, one VGA input and one stereo audio input; one HDMI output; Compliant with HDMI 1.2 and HDCP 1.1; Support 24-bit color depth and resolutions up to 720P@60Hz; LED indicator for selection of YPbPr input and VGA input; Hardware conversion, Easy to install and simple to use.

Detailed description

Features:

One YPbPr input, one VGA input and one stereo audio input; one HDMI output
Compliant with HDMI 1.2 and HDCP 1.1
Support 24-bit color depth and resolutions up to 720P@60Hz
LED indicator for selection of YPbPr input and VGA input
Hardware conversion, Easy to install and simple to use

Specifications

Item	Specification
Product	YPbPr +VGA to HDMI HDC 1/1
Input signal	VGA/YPbPr signal and stereo audio signal
Output signal	HDMI signal
Input VGA resolution	640480@60Hz, 640480@75Hz, 640480@85Hz, 800600@60Hz,800600@75Hz,800600@85Hz, 1024768@60Hz,1024768@75Hz,1024768@85Hz, 1280720@60Hz,1280768@60Hz,1280800@60Hz,1280*960@60Hz
Input YPbPr resolution	480i@60Hz, 480P@60Hz,576i@50Hz, 576P@50Hz,720P@50Hz,720P@60Hz,1080i@50Hz,1080i@60Hz, 1080P@50Hz,1080P@60Hz
Output HDMI resolution	720P@60Hz
HDMI specification	HDMI V1.2 and HDCP complaint
Operation Temperature	0℃ to 70℃
Power Supply	DC 5V 2A
Housing Material	ABS
Dimension	1509927mm
