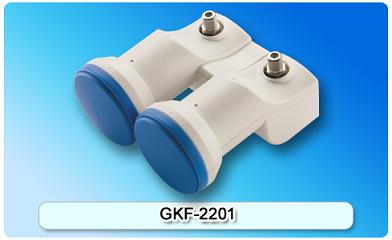

151037. GKF-2201 Multi Grade Dual Single LNB
Features:
- Easy installation
- Low noise figure
- HD ready
- Low power consumption
- High quality weather protection
-
Simplest solution to achieve use one dish to receive two satellite signal simultaneously
Specifications
| Item | Specification | Item | Specification |
| Input Frequency Range |
Low Band:10.70~11.70GHz High Band:11.70~12.75GHz |
L.O. Phase Noise |
-50dBc/Hz@1KHz |
| Output Frequency Range |
Low Band:950~1950MHz High Band:1100~2150MHz |
Image Rejection |
40dB(Min.) |
| Noise Figure |
Low Band:0.6dB(Typ.) High Band:0.6dB(Typ.) |
Output VSWR |
2.0:1(Max.) |
| Conversion Gain | 60dB(Typ.) |
Output Power |
0dBm (Min.)(at 1dB gain compression) |
| Gain Flatness |
±0.5dB/26MHz |
Connector Type |
75Ω Female Connector |
| Cross POL. Isolation |
25dB(Typ.) |
DC Current Consumption |
80mA(Typ.) |
| L.O. Frequency |
Low Band:9.75GHz |
Low/High Band Switching |
Low Band:0Hz |
| L.O. Frequency Stability |
±1.0MHz(Max.)@+25℃ |
POL. Switching Voltage |
10.5~14.0V @VP |
| Operating Temperature |
-30℃~+70℃ |
Adjustable Distance Range |
0～37mm |
