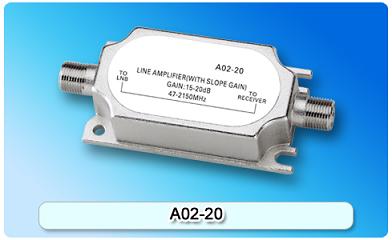

150904. A02-20 In-line Amplifier

Zinc die-cast housing,nickel-plated; Power supply:15±3VDC; Frequency Range:47-2150MHz; Power supplied from satellite receiver through coaxial cable; DC power passing: 500mA (MAX.); With Slope Gain:15dB-20dB.

Detailed description

Features:

Zinc die-cast housing,nickel-plated
Power supply:15±3VDC
Frequency Range:47-2150MHz
Power supplied from satellite receiver through coaxial cable
DC power passing: 500mA (MAX.)
With Slope Gain:15dB-20dB

Specifications

Item	Frequency Range(MHz)	Gain(dB)	Return Loss(dB)
A02-20	47-2150	15-20	≥10.0
