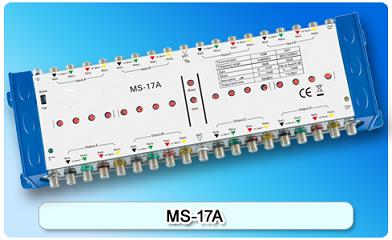

150686. MS-17A Cascadable Amplifier, 17 In Series

Gain adjustable design; Can compensate the loss in your distribution system; External 20V, 3000mA DC power supply; Red LED for power in, yellow LED for power link.

Detailed description

Features:

Gain adjustable design
Can compensate the loss in your distribution system
External 20V, 3000mA DC power supply
Red LED for power in, yellow LED for power link

Specifications

Item	Specification	Item	Specification
Frequency Range ANT	5-860(MHz)	Output Level ANT	105(dBuV)
Frequency Range SAT	950-2150(MHz)	Output Level SAT	110(dBuV)
Gain SAT	20(dB)	Noise Figure	6(dB)
Gain ANT	18(dB)	DC Power Consumption	350(mA)
Slope Control SAT	0/ 6(dB) selectable	Supply Voltage(VDC)	20V(±1)3000mA
Slope Control ANT	0-10(dB)	Temperature Range	-20℃-60℃
Return Loss	10(dB)	Impedance(all ports)	75(Ω)
Gain Adjustable Range	0-10(dB)

Connectors:“F” type female
