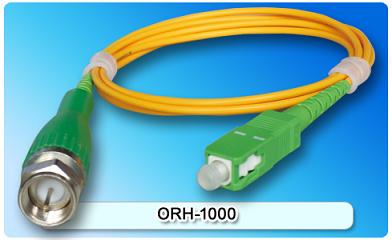

153112. ORH-1000 Micro optical receiver
  • 153112. ORH-1000 Micro optical receiver

153112. ORH-1000 Micro optical receiver

Designed for FTTH(Fiber To The Home) networks;Without the power supply can work normally.
Detailed description

Features:

  • Designed for FTTH(Fiber To The Home) networks
  • Without the power supply can work normally


Specifications

Item

Specification

Item

Specification

 Input optical power

-15~+0dBm Fiber diameter 2mm
Optical receive wavelength 1100~1600nm Fiber Length 1000mm
Output level 70dBuV@-1dBm Optical connector SC/APC Pigtail
RF Frequency Range 47-1000MHz RF connector F-male or F-female
Responsivity ≥0.9 A/W
