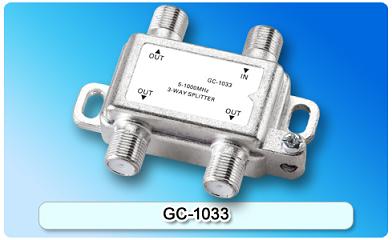

151412. GC-1033 5-1000MHz 3-way Splitter

Zinc die-cast housing, tin-plated; Screening factor: 5-1000 MHz≥100dB; Easy installation; Low insertion loss,high return loss and isolation; Micro-strip circuit design and perfect performance index; All ports F-(f)connector,75 Ohm.

Detailed description

Features:

Zinc die-cast housing, tin-plated
Screening factor: 5-1000 MHz≥100dB
Easy installation
Low insertion loss,high return loss and isolation
Micro-strip circuit design and perfect performance index
All ports F-(f)connector,75 Ohm
6KV Surge Protected

Specifications

Frequency Range(MHz)	Insertion Loss(dB)	Mutual Isolation (dB)	Return Loss(dB)
5-40	≤5.2	≥30	≥20
40-470	≤5.5	≥28	≥20
470-860	≤6.0	≥25	≥18
860-1000	≤6.5	≥22	≥18
