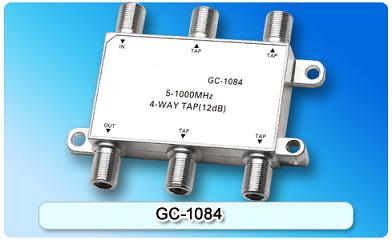

151516. GC-1084 5-1000MHz 4-way Tap

Zinc die-cast housing, tin-plated; Screening factor: 5-1000MHz≥120dB; Low insertion loss,high return loss and isolation; Micro-strip circuit design and perfect performance index; All ports F-(f)connector,75Ohm.

Detailed description

Features:

Zinc die-cast housing, tin-plated
Screening factor: 5-1000MHz≥120dB
Low insertion loss,high return loss and isolation
Micro-strip circuit design and perfect performance index
All ports F-(f)connector,75Ohm

Specifications

Item	Frequency Range	10	12	14	16	18	20	22	24	27	30
Insertion Loss (dB)	5-40(MHz)	3.8	3.8	2.5	2	2	1.2	0.8	0.8	0.8	0.8
	40-470(MHz)	3.8	3.8	2.5	2	2	1.2	0.8	0.8	0.8	0.8
	470-860(MHz)	4	4	2.8	2.2	2.2	1.5	1	1	1	1
	860-1000(MHz)	4.2	4.2	3	2.5	2.2	1.5	1	1	1	1
Tap Loss Tolerance (dB)	5-40(MHz)	±1.0
	40-470(MHz)	±1.0
	470-860(MHz)	±1.2
	860-1000(MHz)	±1.5
Mutual Isolation (dB)	5-40(MHz)	28	28	28	28	28	28	28	28	28	28
	40-470(MHz)	28	28	28	28	28	28	28	28	28	28
	470-860(MHz)	25	25	25	25	25	25	25	25	25	25
	860-1000(MHz)	25	25	25	25	25	25	25	25	25	25
Reverse Isolation (dB)	5-40(MHz)	28	28	28	30	30	30	30	40	40	40
	40-470(MHz)	25	25	28	28	25	30	30	35	35	35
	470-860(MHz)	25	25	25	25	25	28	28	30	30	30
	860-1000(MHz)	25	25	25	25	25	25	27	28	28	28
Return Loss (dB)	5-40(MHz)	20	20	20	20	20	20	20	20	20	20
	40-470(MHz)	20	20	20	20	20	20	20	20	20	20
	470-860(MHz)	18	18	18	18	18	18	18	18	18	18
	860-1000(MHz)	18	18	18	18	18	18	18	18	18	18
