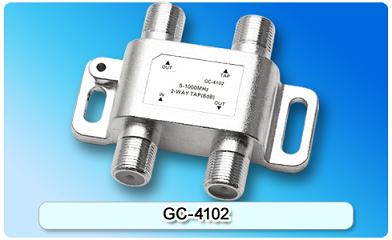

151548. GC-4102 5-1000MHz 2-way Tap

Zinc die-cast housing, tin-plated; Light weight and compact size; Easy installation with two edge hole sites; Screening factor: 5-1000MHz≥100dB; Micro-strip circuit design and perfect performance index; All ports F-(f) connector,75Ohm.

Detailed description

Features:

Zinc die-cast housing, tin-plated
Light weight and compact size
Easy installation with two edge hole sites
Screening factor: 5-1000MHz≥100dB
Micro-strip circuit design and perfect performance index
All ports F-(f) connector,75Ohm

Specifications

Item	Frequency Range	6	8	10	12	14	16	18	20	22	24	26	28	30	32
Insertion Loss (dB)	5-40(MHz)	2.5	2.0	2.0	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8
	40-470(MHz)	2.5	2.0	2.0	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8
	470-860(MHz)	2.5	2.0	2.0	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8
	860-1000(MHz)	3.0	2.4	2.4	1.5	1.2	1.0	1.0	1.0	1.0	1.0	1.0	1.0	1.0	1.0
Tap Loss Tolerance (dB)	5-40(MHz)	±1.0
	40-470(MHz)	±1.0
	470-860(MHz)	±1.5
	860-1000(MHz)	±1.5
Reverse Isolation (dB)	5-40(MHz)	25	30	25	30	30	30	35	35	35	40	42	42	42	45
	40-470(MHz)	24	28	25	28	28	28	30	32	32	35	38	38	40	42
	470-860(MHz)	24	28	25	28	28	28	30	32	32	35	38	38	40	42
	860-1000(MHz)	22	25	25	26	26	26	28	28	28	28	30	35	36	38
Return Loss (dB)	5-40(MHz)	20	20	20	20	20	20	20	20	20	20	20	20	20	20
	40-470(MHz)	20	20	20	20	20	20	20	20	20	20	20	20	20	20
	470-860(MHz)	17	17	17	17	17	17	17	17	17	17	17	17	17	17
	860-1000(MHz)	17	17	17	17	17	17	17	17	17	17	17	17	17	17
