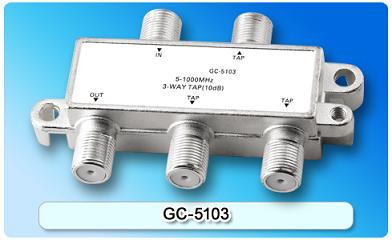

151559. GC-5103 5-1000MHz 3-way Tap

Zinc die-cast housing, tin-plated; Light weight and compact size; Easy installation with two edge hole sites; Screening factor: 5-1000MHz≥100dB; Micro-strip circuit design and perfect performance index; All ports F-(f) connector,75Ohm.

Detailed description

Features:

Zinc die-cast housing, tin-plated
Light weight and compact size
Easy installation with two edge hole sites
Screening factor: 5-1000MHz≥100dB
Micro-strip circuit design and perfect performance index
All ports F-(f) connector,75Ohm

Specifications

Item	Frequency Range	10	12	14	16	18	20	22	24	27	30
Insertion Loss (dB)	5-40(MHz)	3.5	3.0	2.5	2.0	2.0	1.2	1.2	1.0	1.0	1.0
	40-470(MHz)	3.5	3.5	2.5	2.0	2.0	1.2	1.2	1.0	1.0	1.0
	470-860(MHz)	3.8	3.5	2.8	2.2	2.2	1.5	1.5	1.2	1.2	1.2
	860-1000(MHz)	4.5	4.0	3.0	2.5	2.2	1.5	1.5	1.2	1.2	1.2
Tap Loss Tolerance (dB)	5-40(MHz)	±1.0
	40-470(MHz)	±1.0
	470-860(MHz)	±1.5
	860-1000(MHz)	±1.5
Mutual Isolation (dB)	5-40(MHz)	28	25	26	26	26	27	27	27	27	27
	40-470(MHz)	28	25	26	26	26	27	27	27	27	27
	470-860(MHz)	25	25	25	25	25	25	25	25	25	25
	860-1000(MHz)	25	25	25	25	25	25	25	25	25	25
Reverse Isolation (dB)	5-40(MHz)	28	27	27	32	35	32	35	40	38	40
	40-470(MHz)	30	27	27	32	35	32	32	40	38	40
	470-860(MHz)	25	25	28	30	32	30	32	35	35	38
	860-1000(MHz)	25	23	25	30	32	30	30	35	32	35
Return Loss (dB)	5-40(MHz)	20	20	20	20	20	20	20	20	20	20
	40-470(MHz)	20	20	20	20	20	20	20	20	20	20
	470-860(MHz)	18	18	18	18	18	18	18	18	18	18
	860-1000(MHz)	18	18	18	18	18	18	18	18	18	18
