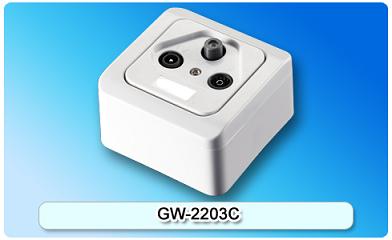

152004. GW-2203C SAT/TV/FM wall socket

Zinc die-cast housing and high-grade plastic panel; Connector: TV IEC 169-29.5mm plug(TC-T);FM IEC 169-29.5mm socket(TC-Z); SAT F-type socket; Screenning factor: 5-450MHz≥75dB;450-862MHz≥75dB;862-2300MHz≥75dB; Suitable for thru type application.

Detailed description

Features:

Zinc die-cast housing and high-grade plastic panel
Connector: TV IEC 169-29.5mm plug(TC-T);FM IEC 169-29.5mm socket(TC-Z)
SAT F-type socket
Screenning factor: 5-450MHz≥75dB;450-862MHz≥75dB;862-2300MHz≥75dB
Suitable for thru type application
Power passing-24V 0.8A(MAX.)

Specifications

Item	Frequency Range(MHz)	Insertion Loss(dB)	Return Loss(dB)
IN-SAT	950-2300	≤13.0	≥10
IN-SAT	5-862	≥25.0
IN-TV	5-68	≤13.0
	125-862	≤13.0
	88-108	≥25.0
	950-2300	≥25.0
IN-FM	88-108	≤2.0
	5-68	≥25.0
	125-862	≥25.0
IN-OUT	5-2300	≤3.0
