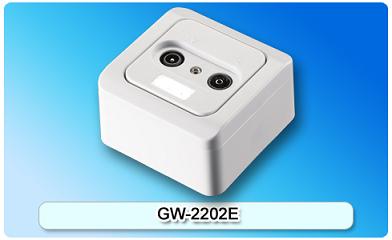

152008. GW-2202E TV/FM wall socket
  • 152008. GW-2202E TV/FM wall socket

152008. GW-2202E TV/FM wall socket

Zinc die-cast housing and high-grade plastic panel; All ports connector, 75 Ohm; Connector: TV IEC 169-29.5mm plug(TC-T);FM IEC 169-29.5mm socket(TC-Z); 2 output ports dedicated for TV and FM signals; Screenning factor: 5-450MHz≥75dB;450-2300MHz≥75dB.
Detailed description

Features:

  • Zinc die-cast housing and high-grade plastic panel
  • All ports connector, 75 Ohm
  • Connector: TV IEC 169-29.5mm plug(TC-T);FM IEC 169-29.5mm socket(TC-Z)
  • 2 output ports dedicated for TV and FM signals
  • Screenning factor: 5-450MHz≥75dB;450-2300MHz≥75dB
  • Suitable for end type application

Specifications

Item

Frequency Range(MHz)

Insertion Loss(dB)

Return Loss(dB)

IN-TV

5-68

≤1.5

≥10

125-1000

≤1.5

88-108

≥25.0

IN-FM

88-108

≤1.5

5-68

≥25.0

125-2300

≥25.0
