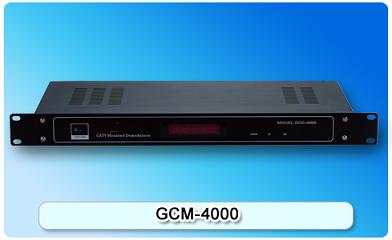

152105. GCM-4000 48.25-860MHz Agile Adjacent demodulator

LED digital display, automatic storage, retention while power off; With microprocessor control, PLL frequency synthesizer technique; Adopting high quality import tuner, capable of receiving full channels of TV signal and demodulating to standard A/V signals; Suitable for 19〞standard rack mounting, with rear panel AC outlet for cascade usage.

Detailed description

Features:

LED digital display, automatic storage, retention while power off
With microprocessor control, PLL frequency synthesizer technique
Adopting high quality import tuner, capable of receiving full channels of TV signal and demodulating to standard A/V signals
Suitable for 19〞standard rack mounting, with rear panel AC outlet for cascade usage

Specifications

Item	Specification	Item	Specification
Input Frequency Rangee	48.25-860MHz	Return Loss	≥8dB
RF Input Level	70dBuV(Typ.)	RF Input Impedance	75 Ω
Video Frequency Respond	±1.5dB	Video Output Level	1Vp-p
Differential Gain	5%	Differential Phase	5°
C/L Delay	60nS	SNR	55dB
Audio Output Level	0.775Vp-p
