152204. GF-BP01 Band Pass Filter(5-1000MHz)
  • 152204. GF-BP01 Band Pass Filter(5-1000MHz)

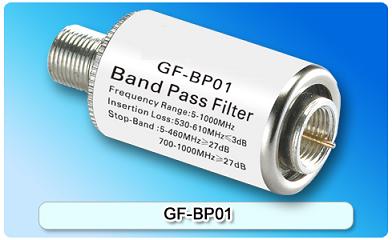

152204. GF-BP01 Band Pass Filter(5-1000MHz)

Low insertion loss, high stop-band rejection Double copper pipe protection, high-screening factor; Built-in O-ring, high water-proof effect; Designed for CATV system.
Detailed description

Features:

  • Low insertion loss, high stop-band rejection
  • Double copper pipe protection, high-screening factor
  • Built-in O-ring, high water-proof effect
  • Designed for CATV system

Specifications

Item UNIT Specification
Frequency Range MHz 5-1000
Cutoff Frequency MHz 5-460    700-1000
Insertion loss dB 3(max)
Stop-band rejection dB 27(min)
Return loss dB 7(min)
Impedance Ω 75

Connectors:"F"type
