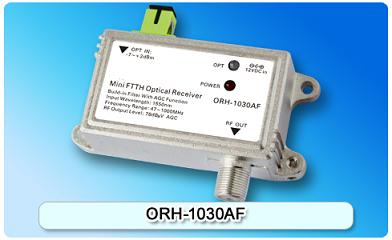

153105. ORH-1030AF Mini FTTH Optical Receiver
Designed for FTTH(Fiber To The Home) networks;
Excellent linearity and flatness;
Single-mode fiber high return loss.
Detailed description
Features:
- Designed for FTTH(Fiber To The Home) networks
- Excellent linearity and flatness
- Wide range of optical input power
- Single-mode fiber high return loss
- Using GaAs amplifier active devices
- Ultra low noise technology
- Smaller size and easier installation
- Red-LED for power indication
- Double color LED for optical power indication (Green on: receive power in cover range about -8 to 0 dBm,Red : low <-8dBm or loss signal)
- Automatic gain control function is realized by MCU
-
Build-in filter, only receiving 1550nm signal
Specifications
|
Number Item |
Unit |
Description |
Remark |
| Customer Interface | |||
| RF Connector | F5-female | ||
| Optical Connector | SC/APC or FC/APC | ||
| Power Supply | DC 5.5*2.1 | ||
| Optical Parameter | |||
| Responsivity | A/W | ≥0.9 | |
| Input Optical Power | dBm | -10～+3 | |
| -7～+2 | AGC | ||
| Optical Return Loss | dB | ≥45 | |
| Input Wavelength | nm | 1550±20 | |
| Optical Fiber Type | Single Mode | ||
| RF Parameter | |||
| Frequency Range | MHz | 47-1000 | |
| Flatness | dB | ±0.75 | |
| Output Level | dBµV | ≥78 | AGC |
| CNR | dB | ≥50 | -1dBm input power |
| CSO | dB | ≥65 | |
| CTB | dB | ≥65 | |
| Return Loss | dB | ≥14 | |
| Output Impedance | Ω | 75 | |
| Other Parameter | |||
| Power Supply | VDC | 12 | |
| Power Consumption | W | <2 | |
| Dimensions | mm | 77*66*23 | |
