130302. Fire resistant cable LSZH EN 50200 PH60-90-120

ire resistant LSZH (low smoke zero halogen) cables suitable for fire alarm systems and emergency lighting circuits. Fire tests: EN 50200 PH60-90-120

Detailed description

Control LSZH fire resistant cables up to 150 minutes for fire detection systems into public buildings (theatres, banks, supermarkets, schools, airports, hospitals, etc.). Rules: UNI 9795:2010, CEI 20-105, EN50200

FTECHNICAL FEATURES

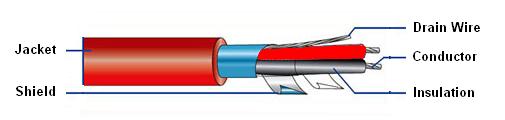

CONDUCTORS Stranded bare copper conductors CEI 20-29 cl.5, EN 60228, IEC 60228 ref.	INSULATION Glass-Mica tape and halogen free crosslinked compound CEI 20-11 quality G10, VDE 0207/23 HJ1 Colour code: differently coloured
SHIELD (OPTIONAL) Aluminium/polyester tape helically wound with stranded bare copper drain wire	JACKET Special halogen free compound CEI 20-11 quality M1, VDE 0207 HM2 colour: Red or on request
ELECTRICAL CONDUCTOR RESISTANCE 0,50 mm2: < 39 Ohm/Km 0,75 mm2: < 26 Ohm/Km 1 mm2: < 19,5 Ohm/Km 1,5 mm2: < 13,3 Ohm/Km 2,5 mm2: < 7,98 Ohm/Km	WORKING TEMPERATURE -20°C + 90°C
BENDING RADIUS 15 times overall diameter of cable	WORKING VOLTAGE 450/750 V 0,6/1 kV
TEST VOLTAGE 450/750 V: 3000 V 0,6/1 kV: 4000 V	FIRE RESISTANCE TEST CEI 20-36/4-0 PH 60, PH 90, PH 120 CEI EN 50200 PH 60, PH 90, PH 120
FLAME RETARDANT TEST CEI 20-35/1-2, EN 60332-1-2	NON-HALOGEN VERIFICATION < 0,5 % (CEI 20-37/2-1, CEI EN 50267-2-1, IEC 60754-1) CORROSIVITY OF COMBUSTION GASES pH: > 4,3 Conductivity: < 10 μS/mm (CEI 20-37/2-2, CEI EN 50267-2-2, IEC 60754-2) SMOKE DENSITY Transmission of light: > 60% (CEI 20-37/3-1) TOXICITY INDEX < 2 (CEI 20-37/7)
CONDUCTORS Stranded bare copper conductors CEI 20-29 cl.5, EN 60228, IEC 60228 ref.	INSULATION Glass/Mica tape and halogen free crosslinked compound CEI 20-11 quality E4, Colour code: Red, Black
SHIELD (OPTIONAL) Aluminium/polyester tape helically wound with stranded tinned copper drain wire	JACKET Special halogen free compound CEI 20-11 quality M1, VDE 0207 HM2 colour: Red
ELECTRICAL CONDUCTOR RESISTANCE 0,50 mm2: < 39 Ohm/Km 0,75 mm2: < 26 Ohm/Km 1,00 mm2: < 19,5 Ohm/Km 1,50 mm2: < 13,3 Ohm/Km 2,50 mm2: < 7,98 Ohm/Km	WORKING TEMPERATURE -20°C + 90°C
BENDING RADIUS 15 times overall diameter of cable	WORKING VOLTAGE 100/100 V
TEST VOLTAGE 2000 V	FIRE RESISTANCE TEST CEI 20-36/4-0 PH 30, CEI EN 50200 PH 30 (rapporto di prova IMQ 01SL00223/1 da scaricare sotto)
FLAME RETARDANT TEST CEI 20-35/1-2, EN 60332-1-2	NON-HALOGEN VERIFICATION < 0,5 % (CEI 20-37/2-1, CEI EN 50267-2-1, IEC 60754-1) CORROSIVITY OF COMBUSTION GASES pH: > 4,3 Conductivity: < 10 μS/mm (CEI 20-37/2-2, CEI EN 50267-2-2, IEC 60754-2) SMOKE DENSITY Transmission of light: > 60% (CEI 20-37/3-1) TOXICITY INDEX < 2 (CEI 20-37/7)
