130804. Waterproof IR camera, 20M

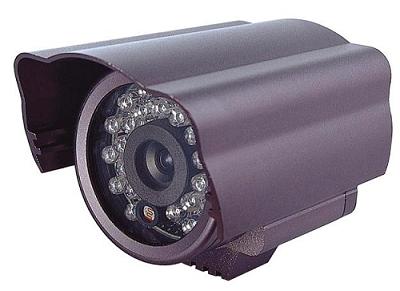

Waterproof IR camera, 20M
Detailed description
Features
1. 1/3" Sony Super HAD CCD
2. 420 TVL
3. 3.6mm standard lens
4. Φ5×18PCS IR LED
5. 20m IR distance
| Model | DF-742RP | DF-742RN | DF-743RN |
| Image Sensor | 1/4" Sharp CCD | 1/4" Sony Super HAD CCD | 1/3" Sony Super HAD CCD |
| Pixels(H×V) | P:512(H) ×582(V) N:512(H) ×492(V) |
P:500(H) ×582(V) N:510(H) ×492(V) |
|
| Scanning System | PAL / NTSC | ||
| Horizontal Resolution | 420 TVL | ||
| Synchronization | Internal | ||
| Minimum Illumination | 0Lux/F1.2 (IR LED ON) | ||
| Backlight Compensation | Automatic | ||
| Electronic Shutter | 1/50(1/60)~1/100,000 Sec. | ||
| White Balance | Automatic | ||
| Lens | Standard Lens 3.6mm | ||
| IR LED | Ø5×18PCS | ||
| IR Wavelength | 850nm | ||
| IR Viewing Range | 20m | ||
| S/N Ratio | ≥48dB | ||
| Gamma Correction | 0.45 | ||
| Video Output | 1.0Vp-p/ 75Ω | ||
| Operation Temperature | -20℃~50℃ | ||
| Power Supply | DC 12V, 1,000mA | ||
| Dimensions (mm) | 105×65×56mm | ||
| Weight (g) | 285g | ||
| IP Grade | IP66 | ||
