131510. Wireless curtain PIR detector
  • 131510. Wireless curtain PIR detector

131510. Wireless curtain PIR detector

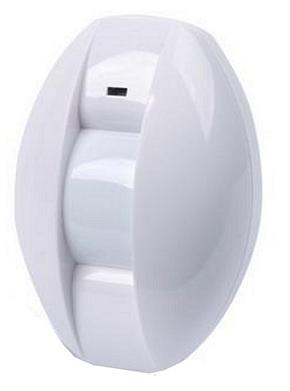

Wireless curtain PIR detector
Detailed description

Model: VIP-906B

Main feature:

1. MCU processing adopted

2. Wireless transmitting digital signal

4. Low power indication

5. Automatic temperature compensation

6. Low power consumption, long battery life

7. SMT adopted, anti-RFI & anti-EMI

8.Adjustable detecting distance

9. Adjustable time of alarm delay

Technology parameter:

Operating voltage: 2*1.5V (2*AA battery)

Standby current: less than 12uA

Alarm current: less than 15mA

Operating temp. :  -10 degree to +50 degrees

Installation mode: wall mounted

Installation height: about 2m

Detecting distance: 9-18m

Detecting angle: 15 degrees

Transmitting freq.: 315MHz or 433MHz

Transmitting distance: more 200m (in the open area)

Dimension: 110*69.5*40mm
