130604. Color Dome Camera

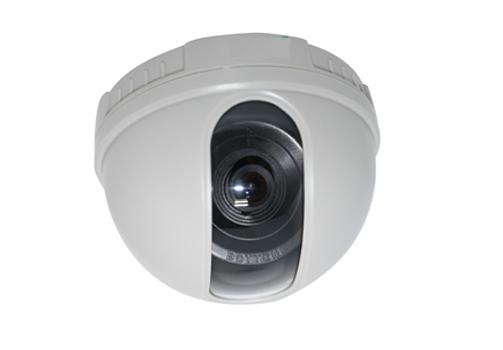

Color Dome Camera
Detailed description
Features
1. 1/3"Sony Super HAD CCD
2. Light, beautiful layout
3. Perfect choice for the lift
Parameters
| Model | DF-360CP | DF-362CN | DF-360CN | DF-362HN |
| Image Sensor | 1/4” Sharp CCD | 1/3" Sony CCD | 1/4" Sony CCD | 1/3" Sony CCD |
| Pixels(H×V) | P:512H) ×582(V) N:512(H) ×492(V) |
P:500(H) ×582(V) N:510(H) ×492(V) |
P:752H) ×582(V)N:768(H) ×494(V) | |
| Scanning System | PAL / NTSC | |||
| Horizontal Resolution | 420 TVL | 650 TVL | ||
| Synchronization | Internal | |||
| Minimum Illumination | 0.1Lux/F1.2 | 0.05Lux/F1.2 | 0.01Lux/F1.2 | |
| Backlight Compensation | Automatic | |||
| Electronic Shutter | 1/50(1/60)~1/100,000 Sec. | |||
| White Balance | Automatic | |||
| Lens | Standard Lens 3.6mm(6mm Optional) | |||
| S/N Ratio | ≥48dB | |||
| Gamma Correction | 0.45 | |||
| Video Output | 1.0Vp-p/ 75Ω | |||
| Operation Temperature | -20℃~50℃ | |||
| Power Supply | DC 12V, 1,000mA | |||
| Dimensions (mm) | Ø99×64mm | |||
| Weight (g) | 136g | |||
