130503. IR Cut Box Camera

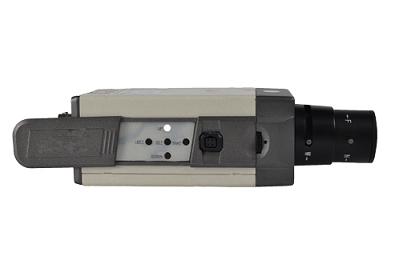

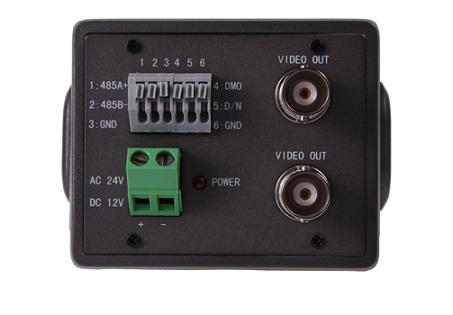

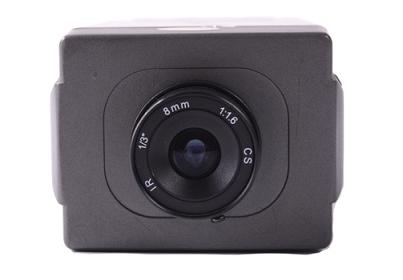

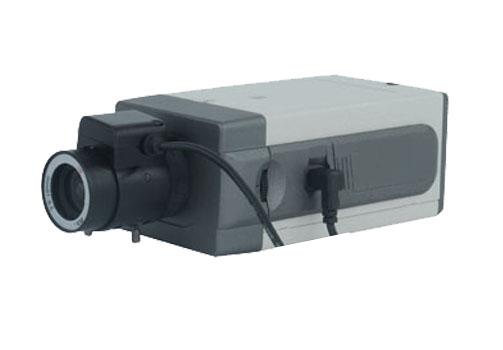

IR Cut Box Camera

Detailed description

Features

1. Electronic shutter speed changeable
2. BLC area selectable
3. AGC changeable
4. White balance mode selectable
5. Color, Contrast Ratio & Sharpness adjustable
6. With mirror function
7. Motion detection on/off

Parameters

Model	DF-202CD	DF-202HD
Image Sensor	1/4” Sony Super HAD CCD	1/3” Sony Super HAD CCD
Pixels(H×V)	P:752(H) ×582(V) N:768(H) ×494(V)
Scanning System	PAL/NTSC
Horizontal Resolution	480 TVL	600TVL
Synchronization	Internal
Minimum Illumination	0.05Lux/F1.2
Backlight Compensation	Automatic
Electronic Shutter	1/50(60)~1/100,000 Sec.
White Balance	Automatic
Lens	F=3.9-85.8mm
Optical Zoom	22X
S/N Ratio	≥48DB
Gamma Correction	0.45
Video Output	1.0Vp-p/75Ω
Operation Temperature	-20~55℃
Power Supply	DC 12V, 1,000mA
Dimensions (mm)	107×58×71mm
Weight (g)	420g
