131002. IR Mini Camera

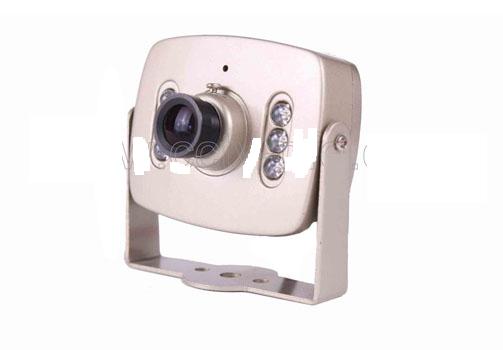

IR Mini Camera
Detailed description
Features
1. 1/3"Sony Super HAD CCD
2. Light, beautiful layout
3. Perfect choice for the lift
Parameters
| Model | DF-274RN |
| Image Sensor | 1/4” Sony Super HAD CCD |
| Pixels(H×V) |
P:512(H) ×582(V) N:512(H) ×492(V) |
| Scanning System | PAL/NTSC |
| Horizontal Resolution | 420TVL |
| Synchronization | Internal |
| Minimum Illumination | 0Lux/F1.2 |
| Backlight Compensation | Automatic |
| Electronic Shutter | 1/50(1/60)~1/100,000 Sec. |
| White Balance | Automatic |
| Lens | 3.6mm |
| IR LED | Ø5×6PCS |
| IR Wavelength | 850nm |
| IR Viewing Distance | 10m |
| S/N Ratio | ≥48dB |
| Gamma Correction | 0.45 |
| Audio Output | Yes |
| Video Output | 1.0Vp-p/75Ω |
| Operation Temperature | -20℃~55℃ |
| Power Supply | DC 12V 500mA |
| Dimensions (mm) | 55×43mm |
| Weight (g) | 121g |
