130822. 50M Waterproof IR Camera

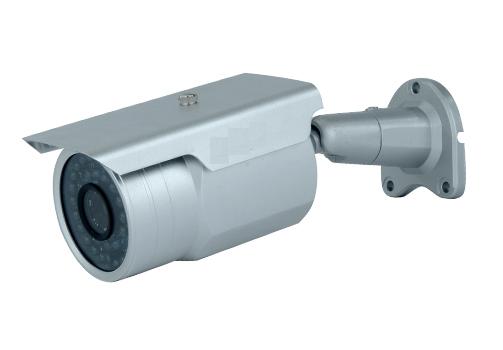

50M Waterproof IR Camera
Detailed description
Features
1. 1/3" Sony Super HAD CCD
2. 600 TVL
3. 8mm/12mm/16mm lens
4. Φ8×36PCS IR LED
5. 50m IR distance
Parameters
| Model | DF-650RN | DF-651RN | DF-652RN | DF-653WDR |
| Image Sensor | 1/3"Sony Super HAD CCD | DSP Effio | ||
| Pixels(H×V) |
P:500(H) ×582(V) N:510(H) ×492(V) |
P:752(H) ×582(V) N:768(H) ×494(V) |
P:752(H) ×582(V) N:768(H) ×494(V) |
P:752(H) ×582(V) N:768(H) ×494(V) |
| Scanning System | PAL/NTSC | |||
| Horizontal Resolution | 420 TVL | 480TVL | 540TVL | 600TVL |
| Synchronization | Internal | |||
| Minimum Illumination | 0Lux/F1.2(IR LED ON) | |||
| Backlight Compensation | Automatic | |||
| Electronic Shutter | 1/50(1/60)~1/100,000 Sec. | |||
| White Balance | Automatic | |||
| Lens | 8mm/12mm/16mm Optional | |||
| IR LED | Ø8×36PCS | |||
| IR Wavelength | 850nm | |||
| IR Viewing Range | 50m | |||
| S/N Ratio | ≥48db | |||
| Gamma Correction | 0.45 | |||
| Video Output | 1.0Vp-p/75Ω | |||
| Operation Temperature | ‘-20~55℃ | |||
| Power Supply | DC 12V，1,000mA | |||
| Dimensions (mm) | 292×95×92mm | |||
| Weight (g) | 1085g | |||
| IP Grade | IP 66 | |||
