130810. Waterproof IR Camera, 30M

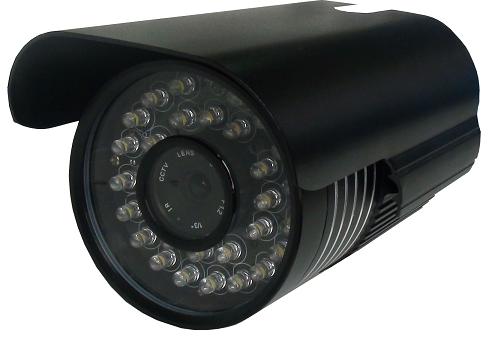

Waterproof IR Camera, 30M
Detailed description
Features
1. 1/3" Sony Super HAD CCD
2. 480 TVL
3. 6mm standard lens
4. Φ8×16PCS IR LED
5. 30m IR distance
Parameters
| Model | DF-936RP | DF-936RN | DF-935RN |
| Image Sensor | 1/4" Sharp CCD | 1/3" Sony Super HAD CCD | |
| Pixels(H×V) |
P:512(H) ×582(V) N:512(H) ×492(V) |
P:500(H) ×582(V) N:510(H) ×492(V) |
P:752(H) ×582(V) N:768(H) ×494(V) |
| Scanning System | PAL/NTSC | ||
| Horizontal Resolution | 420 TVL | 480 TVL | |
| Synchronization | Internal | ||
| Minimum Illumination | 0Lux/F1.2 (IR LED ON) | ||
| Backlight Compensation | Automatic | ||
| Electronic Shutter | 1/50(60)~1/100,000 Sec. | ||
| White Balance | Automatic | ||
| Lens | Standard Lens 6mm (3.6mm Optional) | ||
| IR LED | Ø8×16PCS / Ø5×30PCS | ||
| IR Wavelength | 850nm | ||
| IR Viewing Range | 30m | ||
| S/N Ratio | ≥48dB | ||
| Gamma Correction | 0.45 | ||
| Video Output | 1.0Vp-p/ 75Ω | ||
| Operation Temperature | -20℃~50℃ | ||
| Power Supply | DC 12V, 1,000mA | ||
| Dimensions (mm) | 133×72×66mm | ||
| Weight (g) | 450g | ||
| IP Grade | IP66 | ||
