130815. 40M Waterproof IR Camera

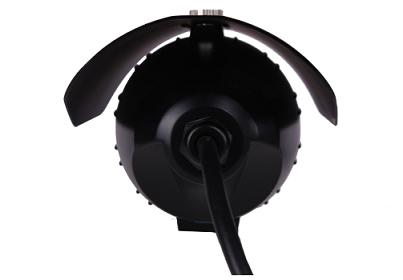

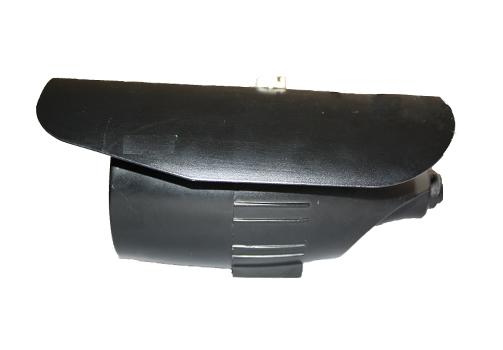

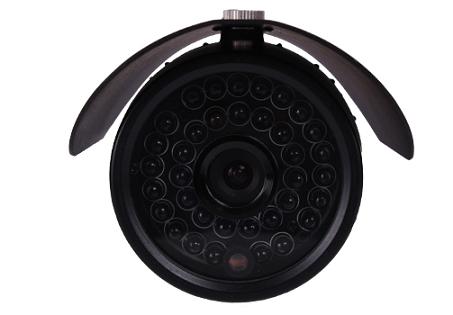

40M Waterproof IR Camera
Detailed description
Features
1/3" Sony Super HAD CCD
480 TVL
6mm standard lens
Φ5×36PCS IR LED
40m IR distance
Parameters
| Model | DF-992RP | DF-992RN | DF-998RN |
| Image Sensor | 1/4" Sharp CCD | 1/3" Sony Super HAD CCD | |
| Pixels(H×V) |
P:512(H)×582(V) N:512(H)×492(V) |
P:500(H)×582(V) N:510(H)×492(V) |
P:752(H)×582(V) N:768(H)×494(V) |
| Scanning System | PAL / NTSC | ||
| Horizontal Resolution | 420 TVL | 480 TVL | |
| Synchronization | Internal | ||
| Minimum Illumination | 0Lux/F1.2(IR LED ON) | ||
| Backlight Compensation | Automatic | ||
| Electronic Shutter | 1/50(1/60)~1/100,000 Sec. | ||
| White Balance | Automatic | ||
| Lens | Standard Lens 6mm (3.6/8mm Optional) | ||
| IR LED | Ø5×36pcs | ||
| IR Wavelength | 850nm | ||
| IR Viewing Range | 40m | ||
| S/N Ratio | ≥48dB | ||
| Gamma Correction | 0.45 | ||
| Video Output | 1.0Vp-p/ 75Ω | ||
| Operation Temperature | -20℃～50℃ | ||
| Power Supply | DC 12V, 1,000mA | ||
| Dimensions (mm) | 150×82×74mm | ||
| Weight (g) | 392g | ||
| IP Grade | IP66 | ||
