131001. Mini Board Camera

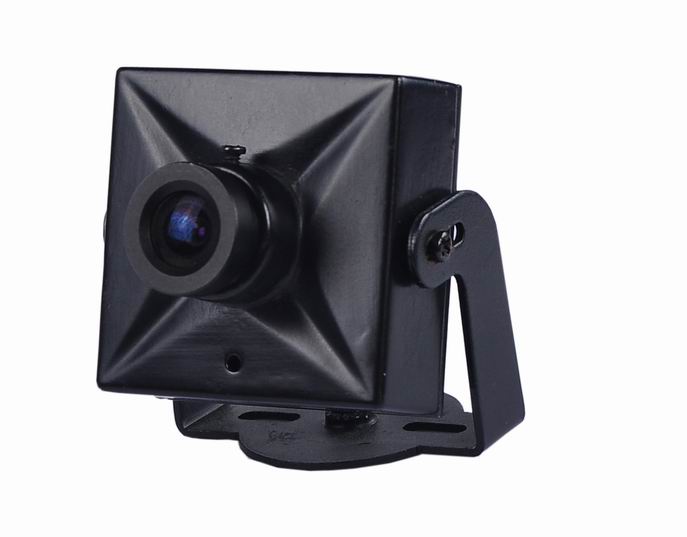

Mini Board Camera
Detailed description
Features
1. 1/3"Sony Super HAD CCD
2. Light, beautiful layout
3. Perfect choice for the lift
Parameters
| Model | DF-242CM | DF-248CP | DF-243CP |
| Image Sensor | CMOS | 1/4” Sharp CCD | 1/3” Sony Super HAD CCD |
| Pixels(H×V) | P:648(H) ×488(V) N:648(H) ×488(V) | P:512(H) ×582(V) N:512(H) ×492(V) | P:500(H) ×582(V) N:510(H) ×492(V) |
| Scanning System | PAL/NTSC | ||
| Horizontal Resolution | 420Lines | ||
| Synchronization | Internal | ||
| Minimum Illumination | 1.0Lux/F1.2 | 0.5Lux/F1.2 | 0.05Lux/F1.2 |
| Backlight Compensation | Automatic | ||
| Electronic Shutter | 1/50(1/60)~1/100,000 Sec. | ||
| White Balance | Automatic | ||
| Lens | 3.6mm board lens | ||
| S/N Ratio | ≥48dB | ||
| Gamma Correction | 0.45 | ||
| Audio Output | Yes | ||
| Video Output | 1.0Vp-p/75Ω | ||
| Operation Temperature | -20℃~55℃ | ||
| Power Supply | DC 12V 500mA | ||
| Dimensions (mm) | 36×36mm | ||
| Weight (g) | 58g | ||
