131610. 4 wired heat detector

4 wired heat detector

Detailed description

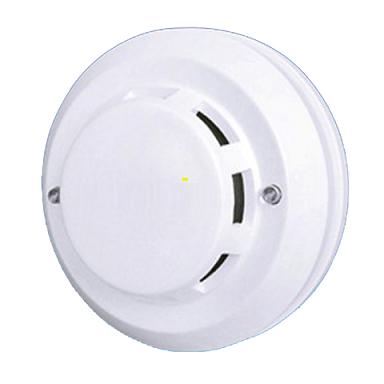

Heat detector

VIP-909Y

Specifications

Heat Alarm

1-Thermistor

2-Connect with alarm system

3-DC24V Operated alarm temp:60 degree

4-LED Flash signal NO COM output

Sensitivity Within the Standard GB4716-93,

1. alarming temperature: 62±2

2.Monitoring current:≤0.2 m A

3.Alarm current:≤20 mA

4.Operating environment:Temperature: -10 +50

Relative humidity: ≤95% (40 ± 2 )

5.Detection area:Within the Standard GBJ116-88, 60

6.Connection method:Four- wire and non-polarity system

7.Size:104 mm×H 35mm

8. The sensor is sensitive and stable the dual NTC (negative temperature coefficient) thermistor.

9. It is designed to be super- thin with a patch technique

10. Due to four-wire and non-polarity, it is easy to install.

11. The detector owns the clean, glossy and beautiful surface and small size, light weight.
