131003. Mini Pinhole Camera

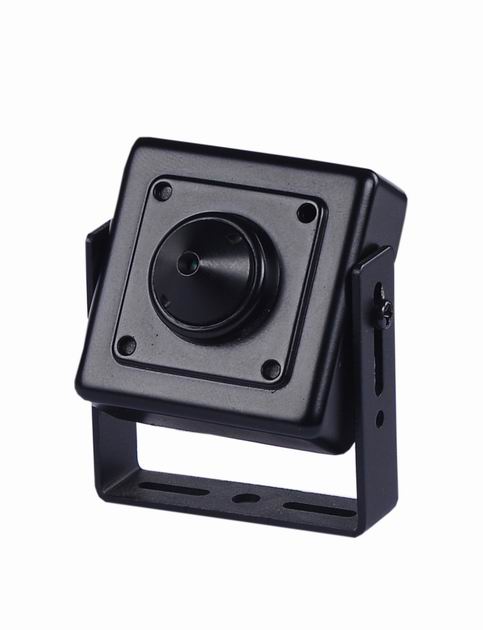

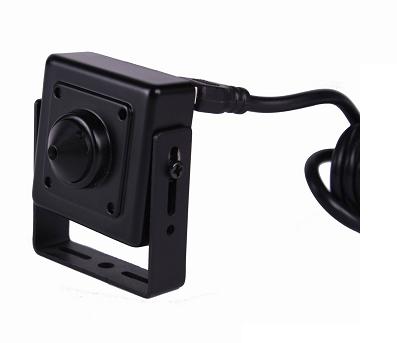

Mini Pinhole Camera
Detailed description
Features
1. 1/3"Sony Super HAD CCD
2. Light, beautiful layout
3. Perfect choice for the lift
Parameters
| Model | DF-233CD | DF-232CD |
| Image Sensor | 1/3” Sharp CCD | 1/3” Sony Super HAD CCD |
| Pixels(H×V) | P:512(H) ×582(V) N:512(H) ×492(V) | P:500(H) ×582(V) N:510(H) ×492(V) |
| Scanning System | PAL/NTSC | |
| Horizontal Resolution | 420Lines | |
| Synchronization | Internal | |
| Minimum Illumination | 0.1Lux/F1.2 | 0.05Lux/F1.2 |
| Backlight Compensation | Automatic | |
| White Balance | 1/50(1/60)~1/100,000 Sec. | |
| Electronic Shutter | Automatic | |
| Lens | 3.7mm board lens | |
| S/N Ratio | ≥48dB | |
| Gamma Correction | 0.45 | |
| Audio Output | Yes | |
| Video Output | 1.0Vp-p/75Ω | |
| Operation Temperature | -20℃~55℃ | |
| Power Supply | DC 12V 500mA | |
| Dimensions (mm) | 30×30mm | |
| Weight (g) | 35g | |
