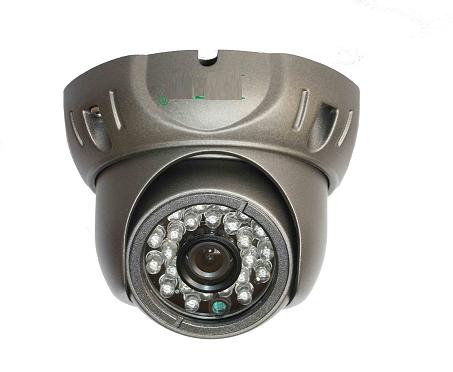

Features
1. 1/3"Sony Super HAD CCD
2. Vandalproof dome camera
3. Perfect choice for the lift, shops and home, etc.
4. Low current circuit design, vandalproof design with aluminum alloy
Model | DF--365RN | DF-365WDR | DF--366RN |
Image Sensor | 1/3"Sony Super HAD CCD | ||
Pixels(H×V) | P:500(H) ×582(V) N:510(H) ×494(V) |
P:752(H)×582(V) N:768(H) ×494(V) |
|
Scanning System | PAL / NTSC | ||
Horizontal Resolution | 420 TVL | 480 TVL | 650 TVL |
Synchronization | Internal | ||
Minimum Illumination | 0 LuxF1.2(IR LED ON) | ||
Backlight Compensation | Automatic | ||
Electronic Shutter | 1/50(1/60)~1/100,000Sec | ||
White Balance | Automatic | ||
Lens | 4-9 mm | ||
IR LED | Ø5×36PCS | ||
IR Wavelength | 850nm | ||
IR Viewing Range | 25~30m | ||
S/N Ratio | ≥48dB | ||
Gamma Correction | 0.45 | ||
Video Output | 1.0Vp-p/ 75Ω | ||
Operation Temperature | -20℃~50℃ | ||
Power Supply | DC 12V, 1,000mA | ||
Dimensions (mm) | Ø139×102mm | ||
Weight (g) | 680g |
