131303. 100wireless and 7wired zones landling alarm system with LCD dislay

100wireless and 7wired zones landling alarm system with LCD dislay

Detailed description

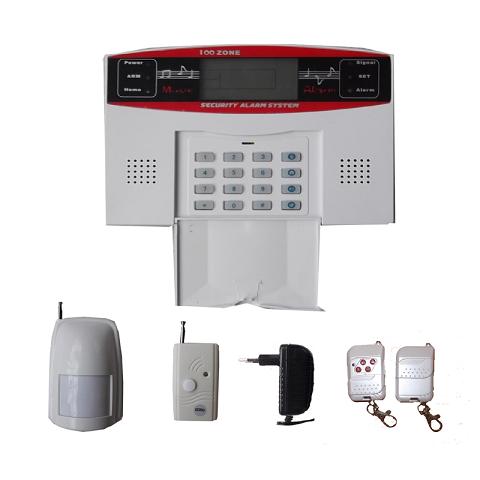

100 wireless zones LCD Home alarm system

Model VIP-801

Functions

1．100 wireless and 8 wire defense zones.

2．Blue backlighting graphic display for clear information.

3 .6 groups of voice alarm phones (mobile phone), and 2 groups of phones in alarm receipt

center.

4. Built-in perpetual calendar and clock; automatic logging of alarm cases by time sequence.

Message recording playback: human recording, synchronous playback for recording effect in

audition.

5. More defense modes: remote defense, keypad defense, and non-local remote defense by

telephone; stay-in defense, timing defense, and individual defense in zones.

6. Programming of defense zone type: all zones could be programmed via keypad for immediate,

delayed, 24-hour and bypass alarm modes.

7. Alarm Position Programming: Intelligent automatic speech recognition: SOS alarm, fire

alarm, gas leak, magnetic contact alarm, hall alarm, window alarm, balcony alarm, and

perimeter alarm

Timing defense and withdrawal: console features automatic timing defense and withdrawal.

8 .Intelligent Music Alarm: full voice prompt. During defense at home, console music and

voice alarm, external siren mute; during defense in the absence, console voice alarm, loud

external siren alarm.

9. Password Recovery: Whether the console is in defense or withdrawal, the lost password can

be recovered.

10. Intelligent learning code: intelligent learning code, newly added with detector which is

prompt and efficient, and convenient and simple.

11. Console status memory: automatic console memory for defense and withdrawal, which could

enable the console to automatically recover defense or withdrawal before power cut after the

reset upon power cut or shut down.

12. Event Log Query: console automatically records 45 pieces of all information concerning

defense, withdrawal and alarm events.

13. Line priority alarm: the console will cut the busy call and switch to priority alarm in

case of the alarm during ongoing call, no matter incoming or outgoing call.

Phone disconnection detection: automatic detection and alarm warning in line disconnection,

for anti-sabotage of telephone lines.

14. Remote control: through remote phone (cell phone) dial-up, many operations could be

realized, like defense, withdrawal and on-site monitoring by the console in the remote

control form.

Console is equipped with battery box, with optional AAA NI-HM rechargeable battery. Console

meets 3C safety standards and national standard GB12663-2001

15. Compatible with internationally accepted protocol of alarm receipt center: Ademco

Contact ID alarm communication protocol.

Technical parameters

1. Input Voltage: DC12V 500mA

2. Standby Current: 50mA

3. Alarm Current: 450mA max

4. Output current: DC12V 150mA

5. Wireless Frequency: 433 MHz

6. Coding Method: 2262 IC / 4.7MΩ

7. Alarm noise: 110dB

8. Back-up Battery: AAA 7.2V

9. Environment Temperature: -20℃ ～ +55℃

10. Relative Humidity: 40% ～ 80%
