130813. 40M Waterproof IR Camera

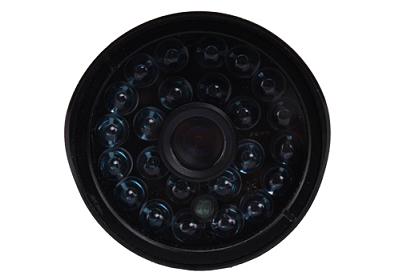

40M Waterproof IR Camera
Detailed description
Features
1. 1/3" Sony Super HAD CCD
2. 540 TVL
3. 6mm standard lens
4. Φ8×24PCS IR LED
5. 40m IR distance
Parameters
| Model | DF-766RN | DF-768RN | DF-769RN |
| Image Sensor | 1 / 3" Sony super HAD CCD | ||
| Pixels(H×V) |
P: 500 (H) × 582 (V) N:510 (H) × 492 (V) |
P: 752 (H) × 582 (V) N: 768 (H) × 494 (V) |
P: 752 (H) × 582 (V) N: 768 (H) × 494 (V) |
| Scanning System | PAL / NTSC | ||
| Horizontal Resolution | 420 TVL | 480TVL | 540 TVL |
| Synchronization | Internal | ||
| Minimum Illumination | 0Lux/F1.2(IR LED ON) | ||
| Backlight Compensation | Automatic | ||
| Electronic Shutter | 1/50(1/60)~100 000 Sec. | ||
| White Balance | Automatic | ||
| Lens | Standard Lens 6mm (3.6/8mm Optional) | ||
| IR LED | Ø8×24pcs | ||
| IR Wavelength | 850nm | ||
| IR Viewing Range | 40m | ||
| S/N Ratio | ≥48dB | ||
| Gamma Correction | 0.45 | ||
| Video Output | 1 Vp-p/ 75 Ω | ||
| Operation Temperature | - 20℃ ~ 50℃ | ||
| Power Supply | DC12V, 1,000mA | ||
| Dimensions (mm) | 117×68×68mm | ||
| Weight (g) | 405g | ||
| IP Grade | IP66 | ||
