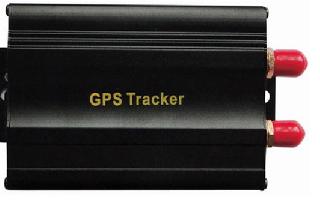

132004. GSM/GPRS/GPS Tracker Professional for Vehicle

GSM/GPRS/GPS Tracker Professional for Vehicle



model:GPS103-A



GPS Tracker,which set multiple functions of accurately positioning,security, monitoring surveillance, emergency alarms and tracking in its entirety,special for vehicle.

The product fully supports the functions of SMS / GPRS / Internet data transmission,to make it more widely used in large-scale monitoring, emergency scheduling, location-based services, traffic safety and many other areas of management.



Detailed description:

It is based on GSM/GPRS（850/900/1800/1900MHZ）wireless telecommunication internet and GPS satellite global position system,track by several ways.provide monitor software and global map.real-time track through the monitor software in your pc;track through your PDA cell phone and googleearth.



Features and functions

◆Small cubage,dimension:83mm*54mm*26mm,weight:120g,easy to hide.

◆Support orientation without orientated server: it can find out Real-time      longitude and latitude, time and speed. By using public map software and    entering longitude and latitude manually, you can find out the real-time information of position.

◆If the target you are inquiring enters into underground parking lot or other GPS blind area, the tracker will inform you the last orientation.

◆Get absolute address by SMS

◆Remote Engine-stop and Resume.

◆tracking function by timing and frequency

◆Remote reset by sms & reset button on the device

◆Input Power: 12V-24V DC

◆GSM/GPS LED indicator

◆Authorized number added and deleted function

◆Support hidden alarm and monitor function

◆Geo-fence: Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to the authorized numbers when it breaches the district.

◆Power supply disconnection alarm.

◆Door alarm

◆ACC alarm

◆Movement alert: you can set up barriers when the vehicle is stopped. Once moved, it can give an alarm to the authorized number.

◆Over speed alarm: you can make the inspected target run according to fixed speed. It alarms when speed is exceeded.

◆Low batttery alarm function

◆Check the vehicle status



Optional functions:

◆Quiver alarm

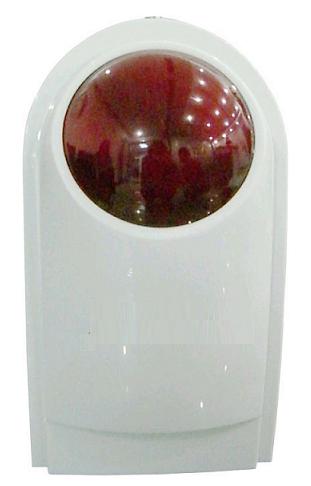

◆siren/horn



Applying directions:

 Vehicle fleet/logistics/Vehicle rental





Technology parameter:

◆GPS chip: SIRF3chip

◆GPS sensitivity:   -159dBm

◆GPS accuracy :5m

◆Time To First Fix   Cold status 45s,Warm status 35s,Hot status 1s





And there is 4 tracking solutions:

◆SMS tracking on cellphone with a googlemap link to view current location on map on cellphone screen.

◆Get absolute address by SMS

◆PC Installation software tracking.

◆Web server online tracking www.gpstrackerxy.com



Standard kits:

 1 pcs GPS Car Tracker TK-103;

 1 pcs GPS Antenna;

 1 pcs GSM Antenna;

 1 pcs Harness;

 1 pcs Relay;

 1 pcs User Manual.
