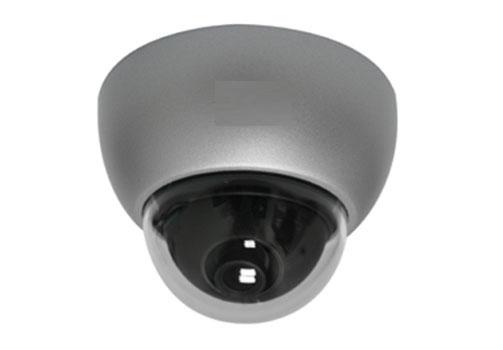

130601. Vandalproof Dome Camera

Vandalproof Dome Camera

Detailed description

Features

1. 1/3"Sony Super HAD CCD

2. Vandalproof dome camera

3. Perfect choice for the lift, shops and home, etc.

4. Low current circuit design, vandal proof design with aluminum alloy

Parameters

Model	DF-242CN	DF-248CN
Image Sensor	1/3” Sony Super HAD CCD
Pixels(H×V)	P:500(H) ×582(V)N:510(H) ×492(V)	P:752(H) ×582(V)N:768(H) ×494(V)

Scanning System	PAL/NTSC
Horizontal Resolution	420 TVL	480 TVL
Synchronization	Internal
Minimum Illumination	0.05Lux/F1.2	0.01Lux/F1.2
Backlight Compensation	Automatic
Electronic Shutter	1/50(1/60)~1/100,000 Sec.
White Balance	Automatic
Lens	Standard lens 3.6mm lens(6mm optional)
S/N Ratio	≥48dB
Gamma Correction	0.45
Video Output	1.0Vp-p/75Ω
Operation Temperature	-20℃~55℃
Power Supply	DC 12V, 1000mA
Dimensions (mm)	Ø63×40mm
Weight (g)	355g
