130817. 40M Waterproof IR Camera

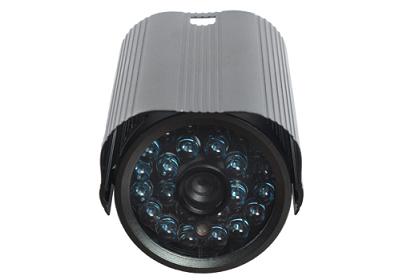

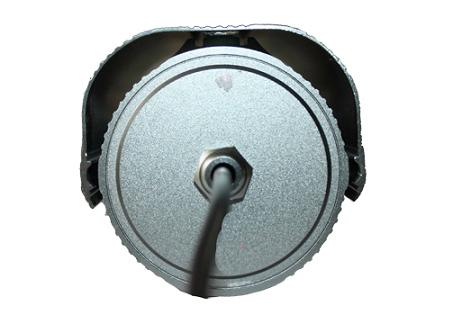

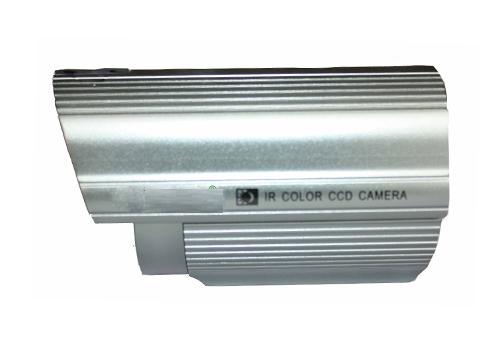

40M Waterproof IR Camera
Detailed description
Features
1. 1/3" Sony Super HAD CCD
2. 420 TVL
3. 6mm standard lens
4. Φ8×42PCS IR LED
5. 40m IR distance
Parameters
| Model | DF-732RP | DF-732RN |
| Image Sensor | 1/4" Sharp CCD | 1/3" Sony Super HAD CCD |
| Pixels(H×V) |
P:512(H)×582(V) N:512(H)×492(V) |
P:500(H)×582(V) N:510(H)×492(V) |
| Scanning System | PAL / NTSC | |
| Horizontal Resolution | 420 TVL | |
| Synchronization | Internal | |
| Minimum Illumination | 0Lux/F1.2 (IR LED ON) | |
| Backlight Compensation | Automatic | |
| Electronic Shutter | 1/50(1/60)~1/100,000 Sec. | |
| White Balance | Automatic | |
| Lens | Standard Lens 6mm (3.6/8mm Optional) | |
| IR LED | Ø8×24pcs | |
| IR Wavelength | 850nm | |
| IR Viewing Range | 40m | |
| S/N Ratio | ≥48dB | |
| Gamma Correction | 0.45 | |
| Video Output | 1.0Vp-p/ 75Ω | |
| Operation Temperature | -20℃～50℃ | |
| Power Supply | DC 12V, 1,000mA | |
| Dimensions (mm) | 130×77×77mm | |
| Weight (g) | 397g | |
| IP Grade | IP66 | |
